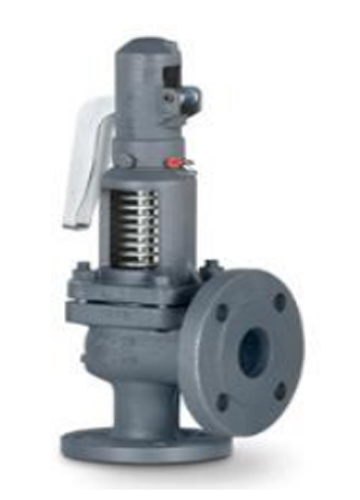

Angle Discharge, Spring Loaded, Full Lift, Full Nozzle, Conventional type Flange End
Pressure / Safety Relief Valve with Open Bonnet, Open (bolted) Cap & Plain Lever.

Features :

High discharge capacity.
Accurate setting for correct blow off pressure.
“Repeatability” of spring for set / reset pressure with high accuracy.
Mirror polished finish metal to metal sea.
Precision lapped valves disc & seat (Nozzle).
Stellited trims (Optional) Set / Reset Pressure Accuracy as per ASME.

Pressure Reducing Valve :

Self-Actuating, Internally Sensed Pilot & Piston operated, Direct Spring & Diaphragm Actuated, Top & Bottom Guided Pressure Reducing Valve with screwed / Flanged End connection.

Features :

Compact & Versatile design for accurate regulation with widest possible range of flow.
High flow rate with greater accuracy due to full lift design.
Stellited trims for high pressure & temperature.
A positive tight shut off by accurate guiding of pilot & main valve assembly.
Constant Outlet pressure is accurately intained without unaffecting by changes
in inlet pressure or flow rate.
Stainless Steel Diaphragm & Harden internal parts provide high performance over long period & trouble-free service life.
Non-metallic trims to give dead tight shut off on air & non corrosive gas application.

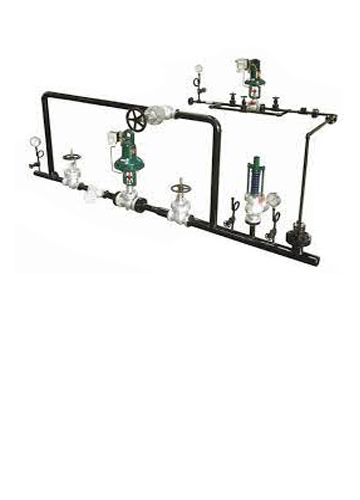

Pressure Reducing Station :

Steam PRDS is used for Steam Conditioning Services for reduction of pressure and temperature of the steam. t is a combination of Control Valve for the pressure reduction purpose & atomizing nozzles, through which water is sprayed into steam for reducing the temperature. and it can be directly installed into your existing steam network.

Features :

Separate PRDS: Separate PRV (Pressure Reducing Valve) and De-Superheater.
Combined PRDS: Both PRV and De-Superheater in a compact single unit i.e. Combined PRDS valve.
Separate / combined systems based on technical feasibility. Conventionally steam pressure reduction and temperature reduction were done in two different units. Now both these functions are carried in one unit which is a combined pressure reducing and de-superheating valve.

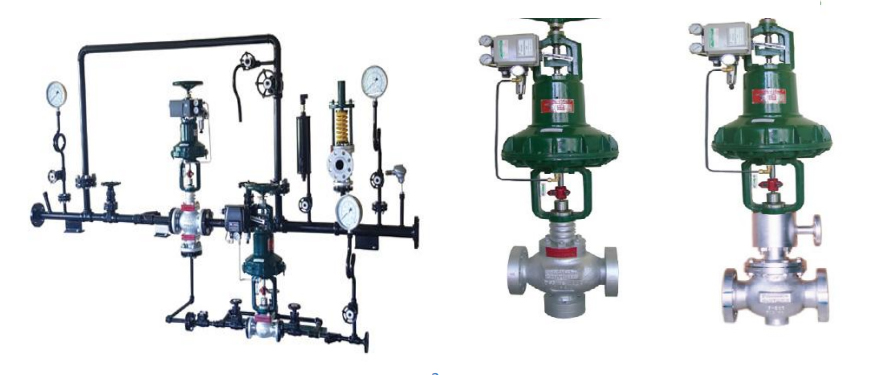

Combined Pressure Reducing Cum DE superheating Valve :

Our Combined PRDS Valve is a single seated globe type valve that combines pressure & temperature in one compact solution.

The high pressure, high temperature steam which enters the main branch, is reduced in pressure, after which immediately spray water is injected to reduce the temperature.

The high velocity and turbulent flow conditions data present immediately, following the pressure reduction. This allows for rapid atomization and absorption of the spray water thus effectively de-superheating the steam.

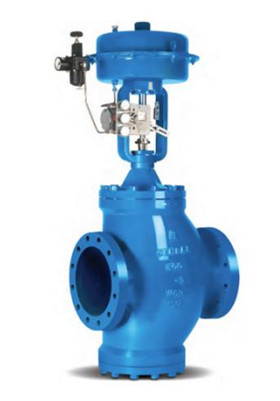

Globe Double Seated 2-way Valve :

The trim is inherently pressure balanced
It very well handles unclean fluids, Gases and Steam
The trim is inherently pressure balanced
Low noise trims are also available
Preferred in refineries and industries wherever the fluid contains sediments, Solid particles and also precision is equally important
Sizes : 40 NB thru 600 NB
Rating : ANSl l50 thru ANSI 900#
(Higher ratings available on request)

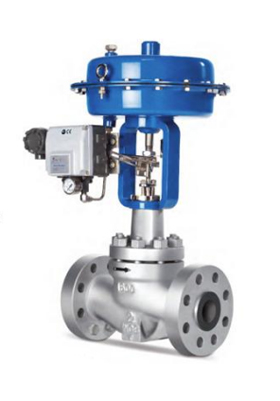

Globe Single Seated 2-way Valve :

Precision Control is its forte.
It is excellent in handling clean fluids, Goses and Steam.
Noise obating Trim designs available.
It satisfies the majority of applications except very high flow rates.
Sizes : 15 NB thru 900 NB
Rating : ANSI 150 thru ANSI 2500#
(Higher ratings not applicable to all sizes)
Rating : ANSl l50 thru ANSI 900#
(Higher ratings available on request)

Globe 3-way Valve :

When one wants to spIit the fluid in TWO DIFFERENT directions or mix TWO DIFFERENT streams of fluids to achieve desired control. This valve can satisfy the application.
Both the characteristics i.e: Linear / ON OFF are available.
Sizes: 15 NB to 600 NB
Rating: ANSI 150 to ANSI 900#
(Higher ratings available on request)

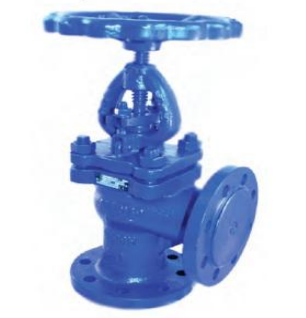

GLOBE ANGLE VALVE :

It is most suitable for Severe, Abrasive, Erosive, Slurry applications. However, needs application engineering on Case-to-case basis
Handles fIashing the best
Sizes:25 NB thru 9OO NB
Rating: ANSI 150 thru ANSI 900#
(Higher ratings availabIe on request)
Higher Size availabIe in fabricated economical version also
