Magnetic Level Gauge (MLG) :
Specifications :
- Range : 300 to 5000mm
- Density : 0.5 g/cm3
- Wtd Parts : SS304/316,PP, PTFE or PVDF
- Indication : Bicolored Flappers or Follower Capsule
- Max. Pressure : 20 Kg/cm2
- Options : Alarm Switches, X’mitters, HART, Steam Jacketing, Electrical Heat Tracing, High Temp Insulation Spring Loaded or Weighted Valve for Marine Appln.
Reflex Flat Glass Level Gauge-RPG :
Specifications :
- Range : 230 – 2000mm
- Gauge Glass : Tempered Borosilicate
- Wetted Parts : CS, ASTMA-105, SS304/316,PP
- Max. Temp : 400°C
- Max. Pressure : 210 Kg/cm2
- Options : Autoball Check, Illuminator. Frost-Free Extension, Steam Jacketing, Spring Loaded or Weighted Valve for Marine Application

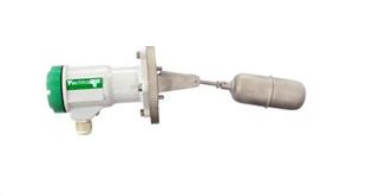

Magnetic float Operated Pivoted Level Switches :
Specifications :
- Wtd Parts : SS304/316, PP or PVDF
- Wtd Parts : SS304/316/316L, PP or PVDF
- Max. Temp : 350°C
- Max Pressure : 20 Kg/cm2
- Liquid Density: 0.6 g/cm3
- Contacts : 5A, 25OVAC x SPDT/DPDT
- Enclosure : Cast Al x IP66 or Ex-P IIB or IIc
- Options : Small/Large floats & screwed/flange process connections
Magnetic Float Guided Level Switch :
Specifications :
- Range : upto 3000mm
- Wtd Parts : SS304/316, PP or PVDF
- Max Temp : 150°C
- Max Pressure : 10 Kg/cm2
- Liquid Density : 0.6 g/cm3
- Contacts : 4OVA (NO), 6OVA(C/O)
- Enclosure : IP66 or Ex-P Gr IIB or IIC
- Options: Intrinsically Safe, Small /Large/Multiple Floats, In-Situ Test Device

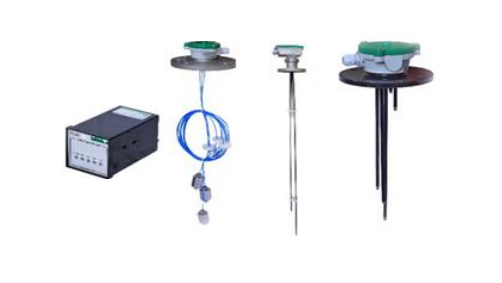

Conductivity Type Level Switch for Liquids :
Specifications :
- Range : 100 – 10000mm
- Wtd Parts : SS304/316
- MaxTemp : 100°C
- Max Pressure : 5 Kg/cm2
- Liquid Conductivity : 25 us
- Contacts : 5A, 25OVAC x SPDT
- Enclosure : Cast Al, IP66 or Ex-P IIB

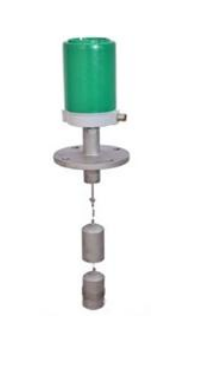

Displacer Type Magnetic Level Switch :
Specifications :
- Range : upto 15 mtrs
- Wtd Parts : SS304/316, PP or PVDF
- Max.Temp : 300°C
- Max. Pressure : 40 Kg/cm2
- Liquid Density : 0.8 g/cm3
- Contacts : 5A 250VAC x 2SPDT
- Enclosure : Cast Al x lP66 or Ex-P IIB or IIC
- Preset Levels : One to Four

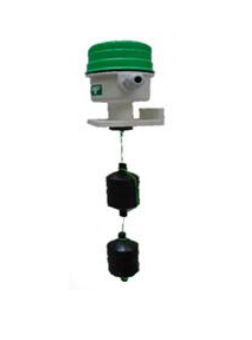

Compact Displacer Level Switch for Water :
Specifications :
- Enclosure : PP, weather proof
- Control Range : 0.5 m to 3 m (max)
- Switch Element : Microswitch
- Contact Type & Rating : 1 x SPDT, 5A, 250VAC
- Displacer : 050 X PP (2 nos)
- Rope MOC : PP
- Process Connection : PP, Square flange cum bracket
- Operating Temperature : 0 to 70°C
- Operating Pressure : Atmospheric
Magnetic Float Guided :
Specifications :
- Range : 400 – 4000mm
- Wtd Parts : SS304/316/316L, PP or PVDF
- Max Temp : 150°C
- Max Pressure : 10 Kg/cm2
- Liquid Density: 0.6 g/cm3
- Enclosure : Cast Al x IP66 or Ex-P IIB or IIc
- Options : Intrinsically safe, HART, RS485
Capacitance Level Transmitters :
Specifications :
- Range : 500 – 5000mm
- Wtd Parts : SS304/316
- Max Temp : 60°C
- Max Pressure : 5 Kg/cm2
- Dielectric Constant : 1.8
- O/P : 4-20 mA, RS485
- Enclosure : Cast AI x IP66
Displacer Level Transmitters :
Specifications :
- Range : 300 – 3000mm
- Wtd Parts : SS316
- MaxTemp : 400°C
- Max Pressure : 60 Kg/cm2
- Liquid Density: 0.6 g/cm3
- O/P : 4-20 mA
- Enclosure : Cast AI x IP66 or Ex-P lIC T6
Hydrostatic Level Transmitters :
Specifications :
- Range : 300 – 3000mm
- Wtd Parts: SS304/SS316
- MaxTemp : 70°C
- Max Pressure : Atm
- O/P : 4-20 mA
- Option : Isolation Valve
- Enclosure : DIN Connector

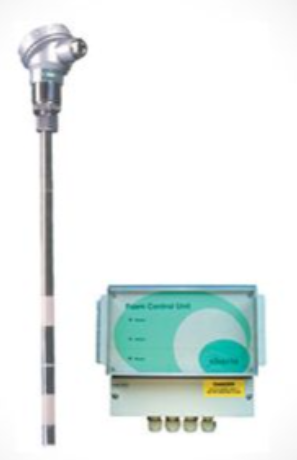

FOAM DETECTION - SURESENSE :
Specifications :
- Probe : SS316 x 4mtrs
- Sensitivity : 0.35 to 100K Ohm
- Max. Temp : 150°F
- Max. Pressure : 10 Bar
- O/P : 5A, 250VAC x 2SPDT or 4-20mA
- Enclosure : PC x IP65

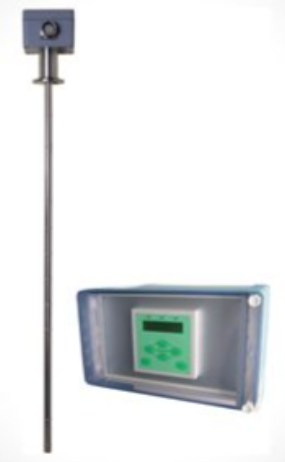

FOAM CONTROL - MULTI SENSE :
Specifications :
- Probe : SS316L x 6 mtrs
- Sensitivity : 0.35 to 100K Ohm
- Max. Temp : 250°F
- Max. Pressure : 25 Bar
- Channels : 8,16 or 24
- O/P : 4 – 20mA (2 no)
- Enclosure : PC x IP65

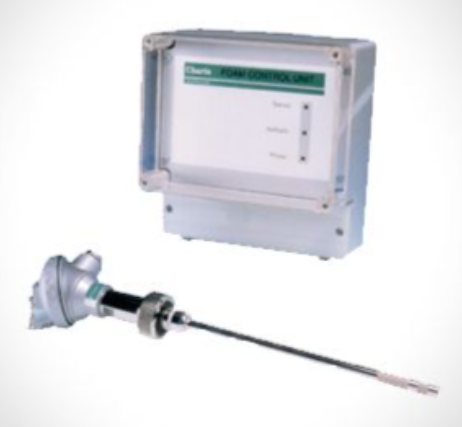

FOAM CONTROL - DI FOAM :
Specifications :
- Probe : SS316 x 4mtrs
- Sensitivity : 0.35 to 100K Ohm
- Max. Temp : 150°F
- Max. Pressure : 10 Bar
- O/P : 5A, 250VAC x 2 SPDT or 4-20mA
- Enclosure : PC x IP65

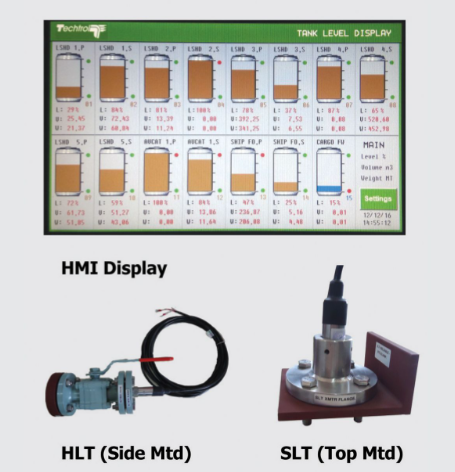

TANK GAUGING SYSTEM (MARINE) - TCGS
Specifications :
- Animated Tank Level with Alphanumerical Display
- High/Low Alarms
- User Friendly Touch Screen Operations
- Brightness Adjustment for Display
- IP68 Transmitters to suit Marine Environment
- IRS Class Certified Gauging System
- Intrinsically Safe Transmitters for Hazardous Areas (Isolated Barriers)
- Remote Tank Levels in WP or Ex-P Panels.
- Customized Tank Gauging Solutions
Applications :
Ferries, Barges, Offshore Platforms and Retrofit Projects.

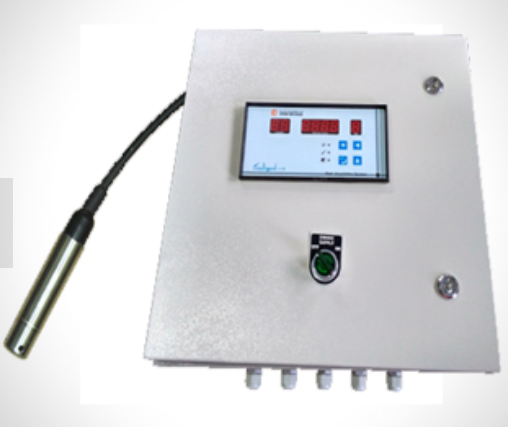

TECHTROL AUTOMATIC WATER LEVEL RECORDING SYSTEM- AWLR
Specifications :
1. Pressure Sensor with Junction Box
- Type : Submersible
- Measuring Range : 50, 80, 100 m WC
- Over Range Pressure : 2 x measuring range
- Output : 4-20mA (2 wire)
- Accuracy : 0.5% FS
- Probe Protection : IP68
2. Data-logger
- No. of Channels : 1, 4 or 8
- Input : 4-20mA (from sensor)
- Accuracy : +/- 0.25% FS
- Digital Display : 4 digits, 0.5”, seven segment
- Level Indication : in meters or percentage
- Power Supply : 110 or 230 VAC or 24VDC
- Battery Backup : Built-in
- Communication : RS 485 (2 wire)
- USB Interface : For external memory chip
3.Wireless System (Optional)
- Quad band 800/900/1800/1900 MHz

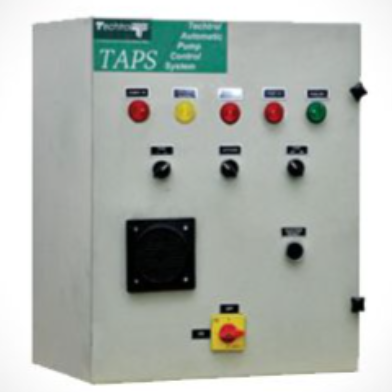

AUTOMATIC PUMP CONTROL – TAPS
Specifications :
- Panel : CRCA Epoxy Ctd
- Pump Rating : Single or Three Phase
- Supply : 230VAC, 415 VAC
- Logic : Overhead Tanks & Sumps
Applications :
Water & Waste Water, Sewage /Effluent Treatment Plants (WTP, STP ,ETP), Pharmaceuticals & Building Automation.

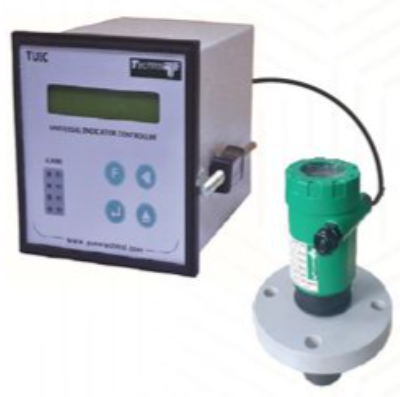

TECHTROL OPEN CHANNEL FLOW SYSTEM - TOCF
Specifications :
- Measuring Range : 0.45 to 10 mtrs
- Power Supply : 90-270VAC, 50-60 Hz,
- Input : 4-20 mA from transmitter
- Output : 4-20mA x 2Relay SPDT 1A @24VDC
- Enclosure : ABS x IP65

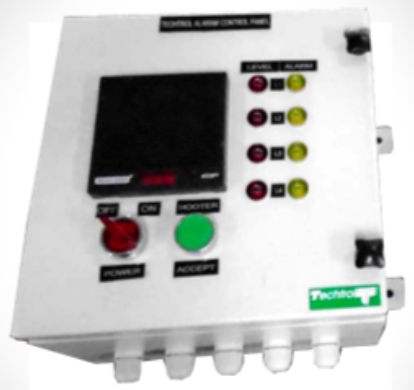

TECHTROL ALARM CONTROL PANEL – TAC
Specifications :
- Circuitry : Microcontroller based
- Supply : 90-270 VAC or 24 VDC (±10%)
- Digital Inputs : 4 nos., Potential Free NO or NC contacts from level switch
- Output : Relay, SPDT 5A, 250 VAC for each input
- Auxiliary Supply : 24 VDC, 50 mA

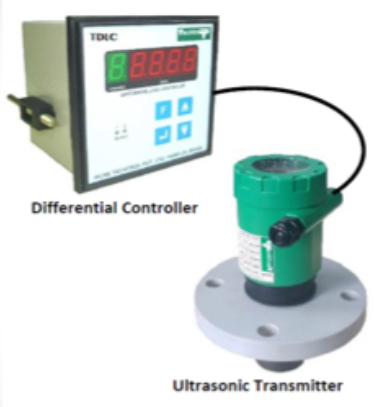

TECHTROL BAR SCREEN DIFFERENTIAL LEVEL CONTROL SYSTEM - TDBS
Specifications :
- Non-contact level measurement thru ultrasonic transmitters
- Easy to install through flange connection
- IP65 enclosure to suit outdoor installation
- Minimal maintenance due to non-moving parts
- User friendly programming through keypad & display
- Option of re- transmission 4-20 mA and RS-485 Modbus RTU

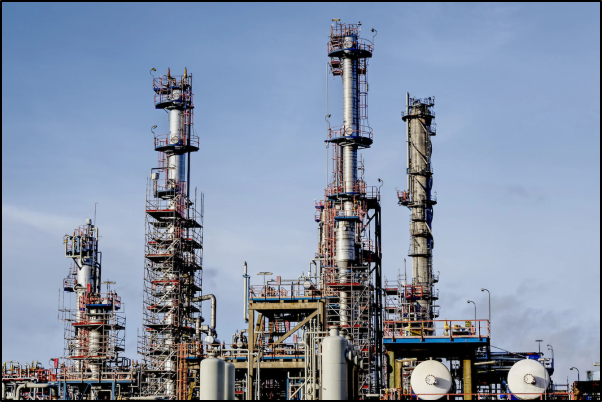

PLANT/PROCESS AUTOMATION
- Complete Brown or green field automation with panel, PLC, SCADA, DCS, RTU, etc.
- Oil and Gas Metering Solution
INSTRUMENTATION & CONTROL
- Complete Brown or green field instrumentation Supply & Services.
- Engineering, Project Consultancy, Commissioning, Start-up and Maintenance
Remote Data Monitoring, KPI & Analytics, Industrial 4.0 (IIoT)
- Any Industries, Any Machine, Any Real-time data on your fingertip with mobility
- End-to-End Solution and Systems to get customized data from field to fingertip
- Web and Mobile Solution for Industries
- Various connectivity options for customers to get one stop solution for their needs
- Engineering and Consultancy for System design and implementation
“BS Vision” Monitoring and Control
- Real time KPI “Picked by you & what matters you most”.
- Informed decision making and compliance reporting
- Correlations of data across process or sites
- Reduce downtime and increase reliability/ availability
- Increase productivity with easy operation
- M-M data that eliminates any chance of errors
- Predictive Asset condition monitoring and alerts
Digital Plant/Digital Twin/GIS
- Surveillance Enhancement
- Outdoor and indoor navigation/Location tracking
- 2D & 3D dynamic digital twin
- Monitoring and inspection
- Digital twins
- Asset Inspection
SIGHT FLOW INDICATORS
Our sight flow indicators are characterized by efficient sealing and simple maintenance, and are available also in high pressure/temperature combinations.
STRAINERS
Our strainers present a wide choice of sizes and materials to meet most filtering requirements. All of our strainers are made to the highest standards.
Sample Coolers
Our sample coolers selection is the widest possible to meet all your steam, water, hydrocarbon and other sampling needs.
Exhaust Heads
Our exhaust heads are especially designed to safely discharge steam into the atmosphere to meet all customer requirements including noise reduction.
Steam Products
Our steam products range is linked to Armstrong International, since D-KTC is its official agent for EPC market. Therefore our selection for hot water, steam and air solutions is the widest worldwide.
Flame Arrestors
Flame arresters are passive devices that prevent the propagation of flame from the exposed side of a pipe to the protected side by the use of a wound crimped metal ribbon type flame cell element.
